ColorEdge CS3200X 31.5″ 4K UHD Color Management Monitor

ColorEdge CS3200X: A 31.5″ 4K Canvas Made for More

The EIZO ColorEdge CS3200X is a 31.5-inch 4K UHD color management monitor built for photographers, retouchers, designers, and video creators who need accurate, consistent color on a large screen. With 99% Adobe RGB and 96% DCI-P3 coverage, hardware calibration with ColorNavigator 7, HDR (HLG and PQ) presets, and single-cable USB Type-C connectivity with 70 W power delivery, it brings EIZO’s professional color accuracy to a bigger, frameless canvas.

Detail, Depth, and Design

Stunning 4K Detail Across a Large 31.5-inch Screen

The ColorEdge CS3200X delivers 4K UHD resolution (3840 x 2160) across a spacious 31.5-inch IPS panel. The large canvas keeps timelines, layers, palettes, and tool panels in view while rendering images with crisp detail, so photographers, designers, and video editors can judge fine textures and subtle tonal transitions without constant zooming.

HDR Gamma for Real-World Depth

Built-in support for Hybrid Log-Gamma (HLG) for broadcast and Perceptual Quantization (PQ) for film and streaming lets you preview and manage HDR content with standardized gamma curves, right alongside your SDR photo and print work.

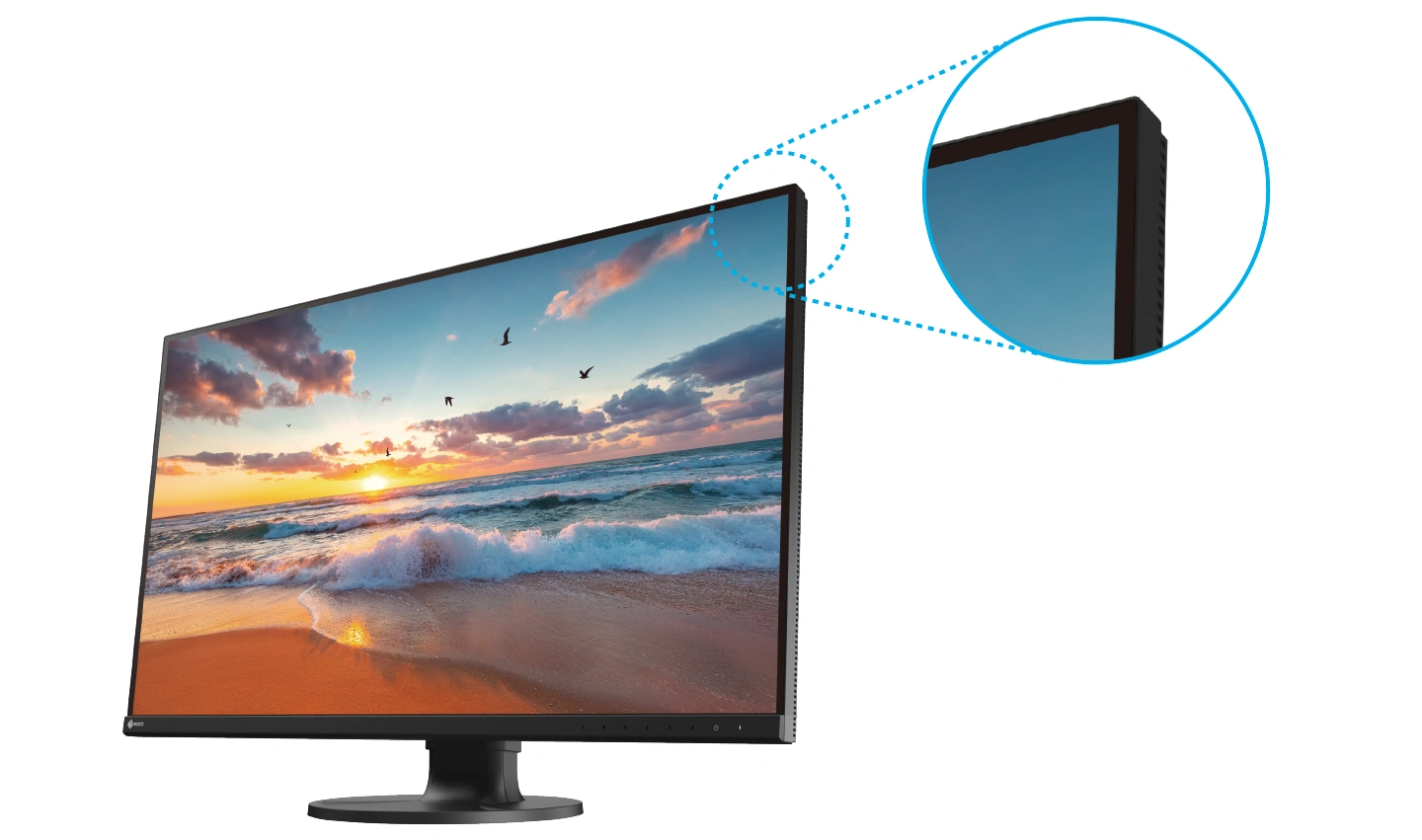

Immersive 3-Sided Frameless Design

A 3-sided frameless design minimizes borders to keep your work in focus, and the fanless, noiseless design supports a calm, distraction-free studio.

Color You Can Trust

Wide Color Gamut for Every Workflow

Covering 99% of Adobe RGB and 96% of DCI-P3, the CS3200X reproduces the colors needed for photography, print, and video production. Presets for Adobe RGB, sRGB, BT.709, DCI-P3, and Display P3 are selectable from the on-screen menu, with Display P3 helping you match content viewed on Apple computers and mobile devices.

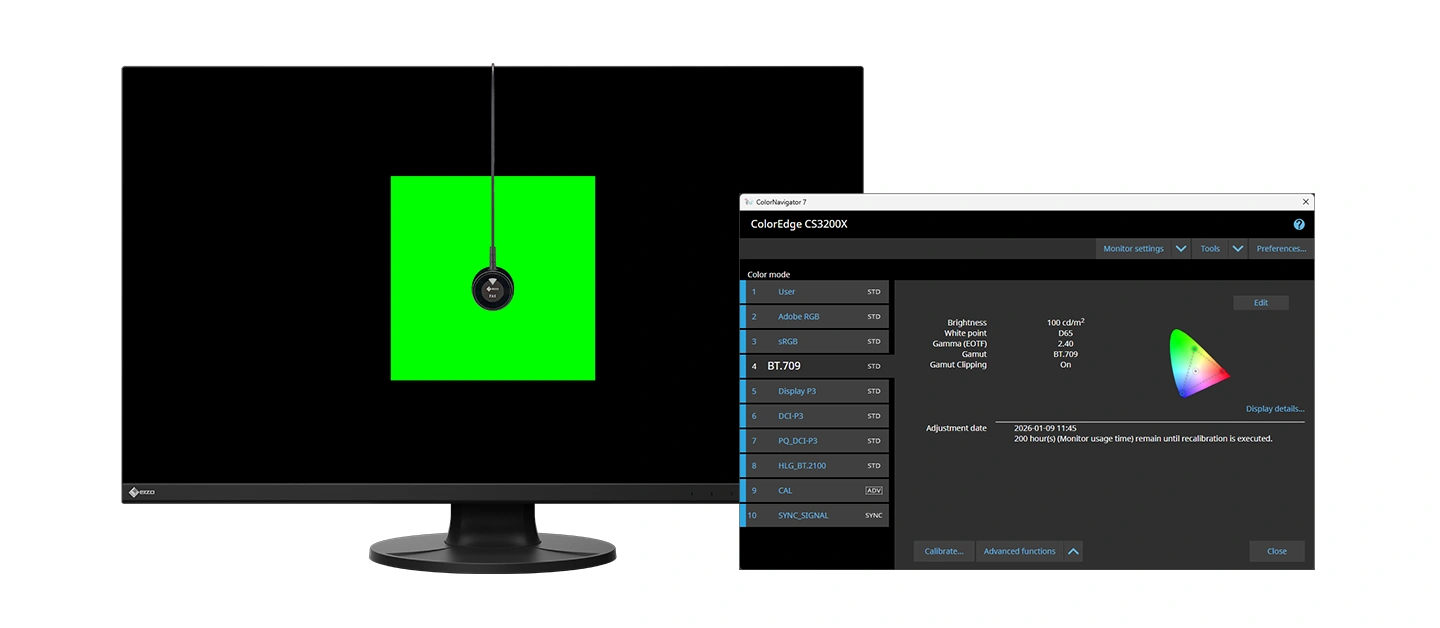

Hardware Calibration with ColorNavigator 7

Calibration data is stored directly in the monitor rather than the operating system, so your color stays accurate even when you connect a different computer. EIZO’s ColorNavigator 7 software makes hardware calibration intuitive and reliable when used with the EIZO EX5 calibration sensor.

Uniformity Across the Screen

EIZO’s Digital Uniformity Equalizer (DUE) keeps brightness and chromaticity consistent from edge to edge, countering the fluctuations common to LCD panels so that color judgments are accurate anywhere on the screen.

10-Bit Display with a 16-Bit LUT

Simultaneous 10-bit display, powered by a 16-bit look-up table, renders more than a billion tones for exceptionally smooth gradations. Every unit ships with an individual Factory Report documenting uniformity, gamma, gamut coverage, and color temperature measurements.

Connectivity That Keeps Creativity Flowing

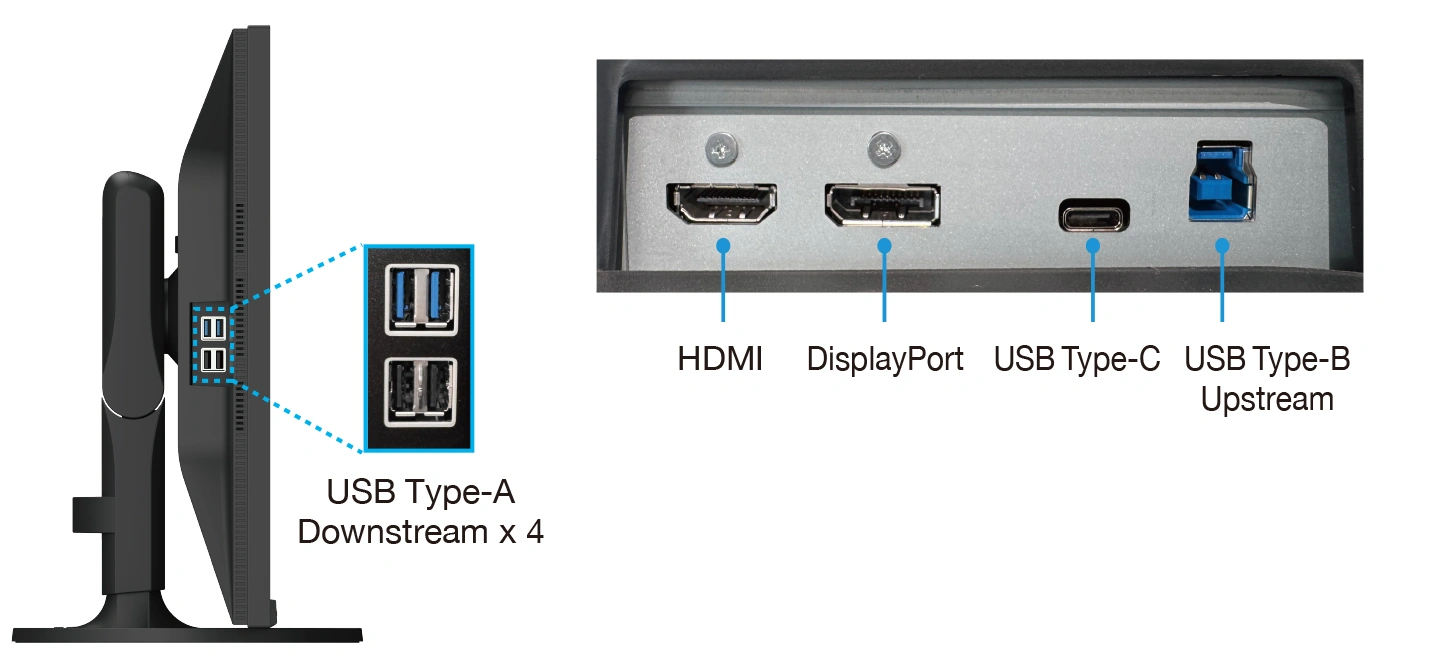

Single-Cable Connection with USB Type-C

One USB Type-C cable carries video, USB data, and up to 70 W of power delivery to a connected laptop. DisplayPort and HDMI inputs and four USB Type-A ports (2 x 5Gbps, 2 x USB 2.0) give you flexible options for desktops and peripherals.

Sync Signal

The Sync Signal function automatically adjusts brightness, gamma, and color gamut according to the incoming signal’s metadata, streamlining the switch between SDR and HDR content and different color spaces.

Magnetic Shading Hood Included

The CS3200X comes with a magnetic shading hood that attaches without complicated assembly. It blocks glare and ambient light for accurate on-screen color evaluation while complementing the monitor’s frameless design.

Built to Last, Built Responsibly

ColorEdge monitors are backed by EIZO’s 5-year manufacturer’s warranty covering all components, including the LCD panel (usage time limited to 30,000 hours), and a six-month zero bright sub-pixel guarantee. EIZO manufactures ColorEdge monitors in its own factories in Japan, which operate on 100% renewable energy, and the CS3200X uses recycled plastics and molded-pulp packaging made from recycled cardboard and newspaper.

What’s in the Box

USB Type-C cable (2 m), HDMI cable (2 m), USB Type-A to Type-B cable (2 m), AC power cord, magnetic shading hood, setup guide, and Factory Report.

Choose Your Package

The ColorEdge CS3200X is available two ways:

• Monitor Only (CS3200X-BK): the CS3200X with magnetic shading hood, cables, and ColorNavigator 7 software. Ideal if you already own a compatible EIZO calibration sensor.
• Monitor + EIZO EX Sensor Bundle (CS3200X-BK-CNX): everything above plus the EIZO EX calibration sensor, so you can hardware-calibrate from day one.

Why Bundle the EIZO EX Sensor?

Every monitor drifts over time. The EIZO EX sensor works with ColorNavigator 7 to measure the screen and write calibration results directly into the monitor’s 16-bit LUT, keeping colors consistent across sessions and computers. Note: EIZO EX sensors are only compatible with EIZO ColorEdge monitors and ColorNavigator software.

ColorEdge CS3200X Specifications
